The Gyrator

Pieter-Tjerk de Boer, PA3FWM pa3fwm@amsat.org

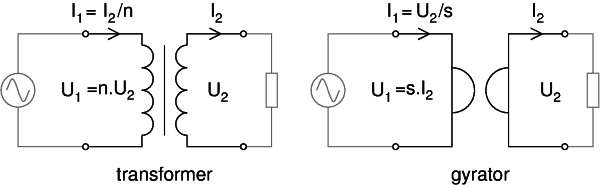

(This is an adapted version of part of an article that I wrote for the Dutch amateur radio magazine Electron, July 2015.) [transformer and gyrator]

We all know the transformer, which converts an (AC) voltage into a larger or smaller AC voltage. The ratio between the primary and secundary voltages equals the ratio of the number of turns of the transformer's coils. At the same time, also the current is transformed, in the opposite ratio. This is summarised in the left half of the figure.

The Dutch engineer/scientist Bernard Tellegen in 1947 originated the idea (see B.D.H. Tellegen: The gyrator, a new electric network element, Philips Research Reports, 1948) that in theory one could design a kind of transformer in which the primary voltage is converted to a secundary current, and vice versa; see at right in the figure. Current and voltage thus exchange roles. He called this thing a gyrator, because of a theoretical analogy with a flywheel (gyroscope).

What does such a gyrator do? If on the secundary side we connect a simple resistor R, on the primary side we'll also measure a resistor, of value s2/R, where s is the gyrator's voltage current conversion ratio. So, the larger the resistor connected on the secondary side, the smaller the resistance measured on the primary side.

If we connect a capacitor C on the secondary side, things get more interesting. Recall that in a capacitor, the current leads (i.e., is ahead of) the voltage (you first feed a current into it, before charge accumulates and a voltage develops across it). Our gyrator exchanges voltage and current, so at the primary side, the current will lag the voltage, which is the characteristic of an inductor. In other words, a gyrator converts a capacitor into a coil! To be precise, if we connect a capacitance C on the secundary side, at the primary side one measures an inductance of L=s2C. The reverse is also true: if an inductor is connected to the secundary side, one measures a capacitance on the primary side.

And this is the use of a gyrator, if we would have one. Large capacitors with good properties can be made relatively easily, while large inductors tend to be physically large and have large losses and/or parasitic capacitance. With a gyrator, one could use such a good capacitor as a replacement for a large coil.

While a long piece of copper wire and a chunk of iron give a transformer that's quite close to what an ideal transformer does, realizing a gyrator is not so easy. In his article, Tellegen considers a couple of practical realizations, among others based on electromechanical systems and on metal plates, coils and a suspension of metal particles, but none of those seem to have been very succesful. So his work is essentially limited to a theoretical construct.

A practical gyrator that radio amateurs have heard about in their license test (although the literature rarely describes it as a gyrator), is the quarter-wave transformer. A transmission line (e.g., coaxial cable) of a quarter wave long and with an impedance Z0 transforms an impedance Z1 connected at one end into Z02/Z1 at the other end. That's precisely the same formula which also describes the gyrator. The obvious limitation is that such a transmission line only does this on the frequency at which it is a quarter wave long (or an odd multiple of it), so it is not a general gyrator.

An electronic gyrator

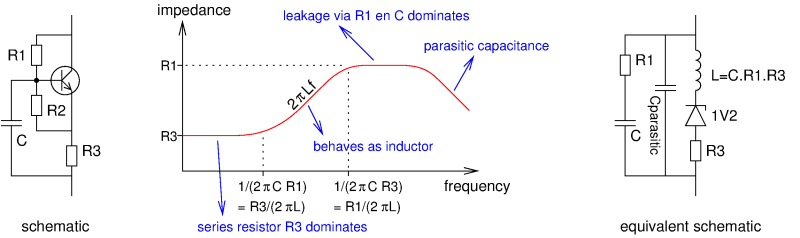

Nowadays, the gyrator is mostly known as an electronic circuit which in a limited range of voltage, current and frequency works as a gyrator, and needs a power supply for that. Many gyrator circuits have been designed, and a simple one is illustrated below (based on P. Strict: Gyrator acts as electronic choke, Electronics World + Wireless World, Sept. 1993). [electronic gyrator]

First consider the situation for DC; then we can ignore the capacitor. The transistor ensures that there is about 0.6 V over R2, and if its currect gain is large enough, its base current can be neglected, so the current through R1 will be approximately the same as through R2; if R1=R2, there will be another 0.6 V across R1. For DC, the whole circuit thus behaves as a resistor with value R3, with a constant extra voltage drop of 1.2 V.

For AC, the situation is different. For high frequencies, the capacitor is almost a short circuit. So if we apply a high-frequency AC voltage superposed on a DC voltage, the voltage on the capacitor will be practically constant. The transistor, acting as an emitter follower, will then ensure that the voltage across R3 is constant too, and thus that the current through the circuit is constant as well (apart from a small AC current through R1 and C). That looks like an inductor: one can't have much of an AC current in it.

For intermediate frequencies, some calculations are needed, but the outcome is that the whole thing behaves as an inductor with value C R1 R3, in series with a resistor R3, and a fixed 1.2 V voltage drop.

We previously defined the gyrator as a thing that effectively interchanges voltage and current, and that's indeed the case here. The voltage across the capacitor determines, via the emitter follower and the emitter resistor, the current through the circuit as a whole. And the current through the capacitor is determined by the voltage across the circuit as a whole, since this voltages charges and discharges the capacitor through R1.

The lion's share of the current through the circuit flows through the transistor, but since it has a finite current gain, it needs to get sufficient base current. That is only possible if R1 is small enough. O.t.o.h., the smaller R1 is, the larger the current which at high frequencies can flow through R1 and C, "around" the simulated inductor. As a consequence, the circuit will only behave as an inductor in a limited range of frquencies, but that may be enough.

The impedance graph in the figure also shows that for very high frequencies, the impedance decreases again. This is caused by parasitic capacitances in the circuit, in particular the capacitance parallel to R1.

Phantom power

Does all of this have any practical use? I ended up with this circuit when searching alternatives for the phantom power supply of an active antenna, i.e., supplying DC power to the antenna via the coaxial cable which also transports the signal. Normally one would use an inductor for this, blocking the high frequency radio signals from the power supply connections. But finding an inductor which has an impedance of at least 500 ohms over the entire frequency range of say 10 kHz to 30 MHz, is not so easy. With a gyrator, this is possible. Choose e.g. R3=10 ohm, R1=R2=1kOhm, C=1µF. Then the circuit behaves as an inductor of 10 mH with 10 ohms in series. At 10 kHz, its impedance is already 600 ohms; at higher frequencies, the leakage via R1 and C dominates, so the impedance will not exceed 1 kOhm. But that is fine for this purpose, because it is high compared to the coax's 50 ohm impedance. The disadvantage compared to a real inductor is the voltage drop across the circuit; e.g., at 100 mA there's already 1 volt across R3, plus the fixed 1.2 V over the transistor (which can be reduced by omitting R2). Furthermore, it can be desirable to connect a small inductor in series with the circuit, to assure a sufficiently high impedance at high frequencies where the gyrator does not work well anymore.
